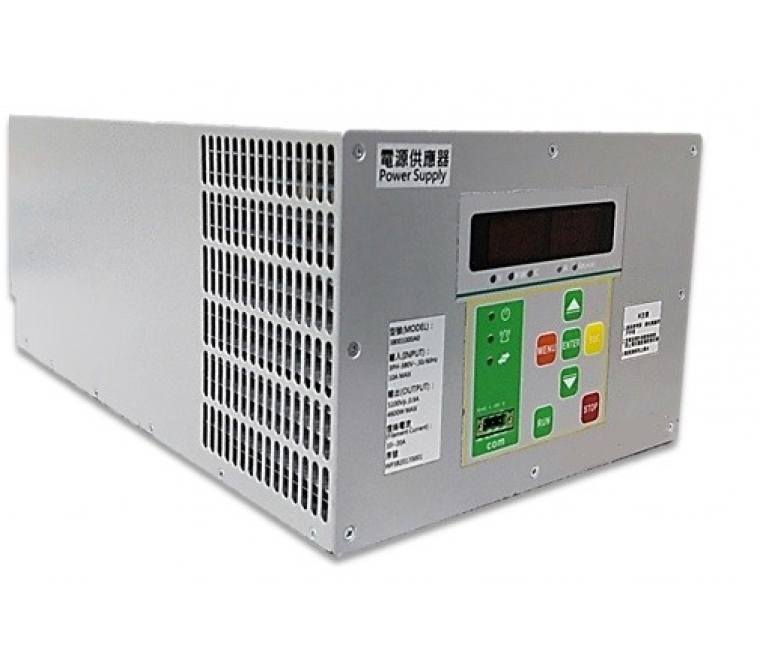

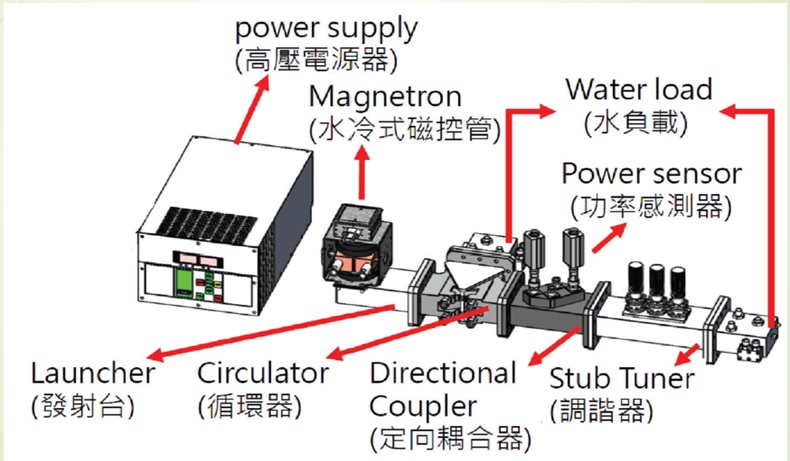

系統組合3D圖
電氣規格(Electrical specification)
- 輸入特性(Input Electrical Characteristics)
|
Input voltage range |
300Vac to 460Vac*3P |
|
輸入電壓 |
|
|
Normal voltage range |
340Vac to 456Vac*3P |
|
標稱輸入 |
|
|
Frequency range |
47Hz~63Hz |
|
頻率範圍 |
|
|
Max Input AC Current |
6 A max. at full load condition |
|
最大輸入電流 |
|
|
Leakage Current |
Less Than 0.5mA, |
|
洩漏電流 |
@ 380Vac input |
|
Normal Max. Input Power |
M1: 4200W |
|
M3: 2800W |
|
|
額定最大功率（380VAC） |
|
|
Regulation Output Power Range |
M1: 360-4200W |
|
M3: 360-2800W |
|
|
輸出功率可調範圍 |
|
|
Max. endure input voltage |
460Vac |
|
最大輸入電壓 |
( 電源不能損壞) |
- 輸出特性(Output Electrical Characteristics)
|
Rated Output Anode HV |
M1: 4500-5000V (DC) |
|
M3: 3200-3700V (DC) |
|
|
額定陽極高壓 |
|
|
Output Anode HV Ripple(Peak-peak) |
≤6% |
|
輸出陽極高壓紋波（峰-峰值） |
|
|
Rated Anode Output Current |
M1: 900mA |
|
M3: 750mA |
|
|
額定陽極輸出電流 |
|
|
Rated Filament Voltage |
M1: 2.5-5.0V（REF） |
|
M3: 3.0-5.2V（REF） |
|
|
額定燈絲電壓 |
|
|
Rated Filament Current |
M1: 10-23A（REF） |
|
M3: 10-22A（REF） |
|
|
額定燈絲電流 |
|
