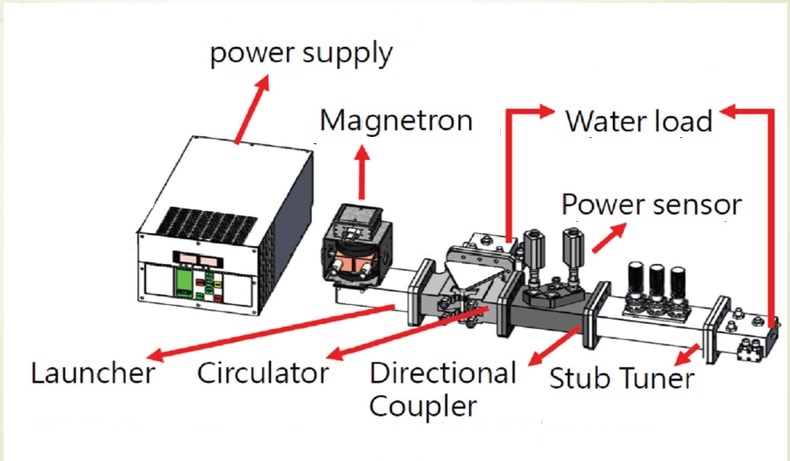

System Planning: System assembly 3D drawing
.jpg)
- (Input Electrical Characteristics)
|
Input voltage range |
300Vac to 460Vac*3P |
|
|
|
|
Normal voltage range |
340Vac to 456Vac*3P |
|
|
|
|
Frequency range |
47Hz~63Hz |
|
|
|
|
Max Input AC Current |
6 A max. at full load condition |
|
|
|
|
Leakage Current |
Less Than 0.5mA, |
|
|
@ 380Vac input |
|
Normal Max. Input Power |
M1: 4200W |
|
M3: 2800W |
|
|
（380VAC） |
M6: 2300W |
|
Regulation Output Power Range |
M1: 360-4200W |
|
M3: 360-2800W |
|
|
|
|
|
Max. endure input voltage |
460Vac |
|
|
(Power supply cannot be damaged) |
- (Output Electrical Characteristics)
|
Rated Output Anode HV |
M1: 4500-5000V (DC) |
|
M3: 3200-3700V (DC) |
|
|
|
M6: 3900-4600V(DC) |
|
Output Anode HV Ripple(Peak-peak) |
≤6% |
|
|
|
|
Rated Anode Output Current |
M1: 900mA |
|
M3: 750mA |
|
|
|
|
|
Rated Filament Voltage |
M1: 2.5-5.0V（REF） |
|
M3: 3.0-5.2V（REF） |
|
|
|
|
|
Rated Filament Current |
M1: 10-23A（REF） |
|
M3: 10-22A（REF） |
|
|
|
|
